Products



Explore our range of lifting tables applications from the ergonomic installation of working stations to handling of heavy loads of several tons.

Our standard or specific lifting equipments are tailored to various applications in all industrial fields.

The advantages of our products are

  • Reliable stability,
  • Combination of movement and high lifting capacities.
  • Their sturdiness is the key to rely on your investment in time.

A qualified and experienced team will handle your projects and advise you.

  • Lifting table - AVL

    The lifting table type AVL is designed to fit many kind of applications.Capacity  from 500 to 2000 daN, Vertical lifting up to 1900 mm,Large choice of dimensions easily modifiable,Various specific additional equipments.
    The lifting table type AVL is designed to fit many kind of applications.Capacity  from 500 to 2000 daN, Vertical lifting up to 1900 mm,Large choice of dimensions easily modifiable,Various specific additional equipments.

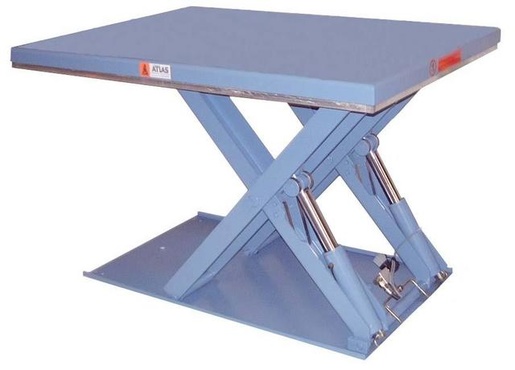

  • Lifting table - EB

    The lifting table type EB is, in pratice, always set on the ground and designed to load and unload pallets.
    The lifting table type EB is, in pratice, always set on the ground and designed to load and unload pallets.

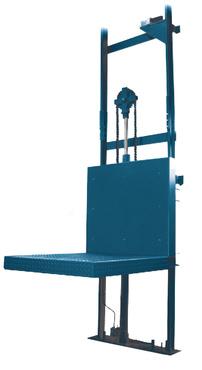

  • Elevator - EC

    The elevator with column is designed to be used as goods-only lift, without embarked person. The guiding column, situated on one side of the platform need to be fixed to the wall or on a self-supporting structure.Capacity from 300 to 2500 daN,Vertical lifting up to 12 000 mm,Dimensions of the platform reduced.
    The elevator with column is designed to be used as goods-only lift, without embarked person. The guiding column, situated on one side of the platform need to be fixed to the wall or on a self-supporting structure.Capacity from 300 to 2500 daN,Vertical lifting up to 12 000 mm,Dimensions of the platform reduced.

  • Lifting table - SL

    The lifting table type SL is specially designed to equip working stations.as : loading and unloading of pallets, control,  preparation of orders, conditioning,…Capacity from 500 to 2000 daN,Vertical lifting up to 1000 mm,Can be equipped with safety bellows
    The lifting table type SL is specially designed to equip working stations.as : loading and unloading of pallets, control,  preparation of orders, conditioning,…Capacity from 500 to 2000 daN,Vertical lifting up to 1000 mm,Can be equipped with safety bellows

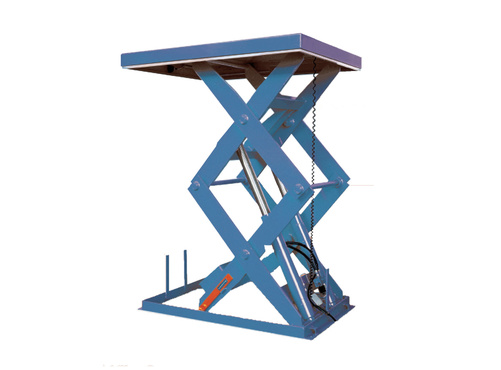

  • Lifting table - SL2

    The lifting table type SL2 is designed to fit various applications.Capacity  from 500 to 2000 daN, Vertical lifting up to 2500 mm, Large choice of dimensions easily modifiable,Various specific equipments.
    The lifting table type SL2 is designed to fit various applications.Capacity  from 500 to 2000 daN, Vertical lifting up to 2500 mm, Large choice of dimensions easily modifiable,Various specific equipments.

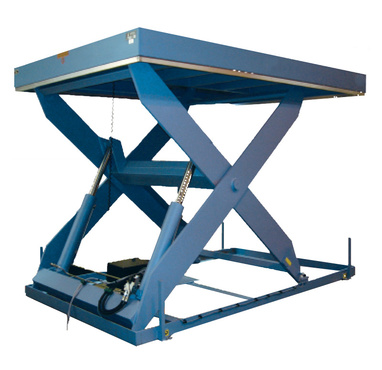

  • Lifting table - SN

    The lifting table type SN is designed to fit various applications.Capacity  from 3000 to 8000 daN, Vertical lifting up to 1800 mm, Large choice of dimensions easily modifiable,Various specific equipments. The type SR  completes our range of standard lifting equipment for capacities up to 12 000 daN and vertical lifting up to 1650 mm.
    The lifting table type SN is designed to fit various applications.Capacity  from 3000 to 8000 daN, Vertical lifting up to 1800 mm, Large choice of dimensions easily modifiable,Various specific equipments. The type SR  completes our range of standard lifting equipment for capacities up to 12 000 daN and vertical lifting up to 1650 mm.

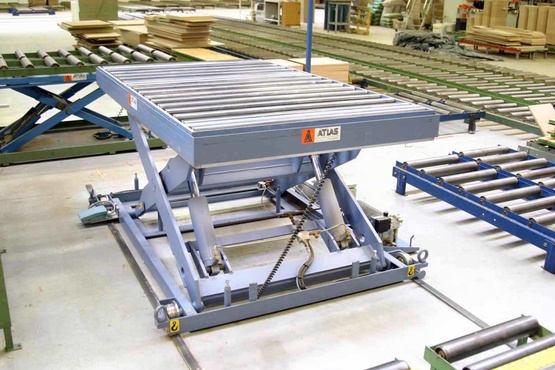

  • Lifting table - BFX

    The lifting table type BFX is specially designed for the wood processing industry. This table includes a roller conveyor for the wood transfer in low position.Capacity up to 1500 daN,Vertical lifting up to 800 mm
    The lifting table type BFX is specially designed for the wood processing industry. This table includes a roller conveyor for the wood transfer in low position.Capacity up to 1500 daN,Vertical lifting up to 800 mm
